SUPER-PAIN 280
// Capacity 7 cm Ø, average output 0,5 m³/h, power from 2,2 to 3,3 kw
SUPER-PAIN 450
// Capacity 12 cm Ø, average output 3 m³/h, power from 2,2 to 40 kw
SUPER-PAIN 600
// Capacity 17 cm Ø, average output 6 m³/h, power from 15 to 60 kw
SUPER-PAIN 900
// Capacity 25 cm Ø, average output 10 m³/, power from 35 to 100 kw
SUPER-PAIN 1300
// Capacity 35 cm Ø, average output 20 m³/h, power from 75 to 220 kw
SUPER-PAIN 1700
// Capacity 50 cm Ø, average output 37 m³/h, power from 110 to 400 kw
Price List
// Selling price of our chippers, from SUPER-PAIN 280 to SUPER-PAIN 1700.
Your particular adaptation
// You have a project, you want advices or a personalized estimate? Please fill out this form !
Comparative table
// See the main features of our range.
Catalog's home
// Back to the catalog homepage.
Home
// Back to the website homepage.
Official Website of the Methods of Jean PAIN
Equipe Jean Pain
BP 16
F 89520 TREIGNY
Tél. : +33 (0)3 8674 7220
E-MAIL :
infos@jean-pain.com
Website optimized for
Mozilla Firefox
3.6. Version or higher.
Recommanded resolution for best navigation: 1280px width minimum.
Hosted by
Webmaster :
Laura BONVALLET
If you have any problem of navigation, ergonomy or for any suggestion, please fill
this form
.
Legal mentions
SUPER-PAIN 1700
«Power for Production»
Chipper with 6 radial
blades
upon a disk of Ø 1700 mm.
Rotation speed : from 540 to 1500 rpm
Special cutting table
thickness of the chips inferior to 4 mm, without any risk of filling-in of the evacuation.
Not any
big piece
or
sawdust
Very strong mechanical-weldment.
Cutting capacity : up to 500 mm diameter (according to the available power).
Output per hour : up to 40 m³ of chipped matter (229 m³ theoretic), according to the type of branches.
Evacuation neck swinging out 360° for loading into trailer (2 m height).
Feeding hopper optimized for feeding with a crane.
Hydraulic bough-dragger
(with autonomous hydraulic generator)
Optional feeding table (for mechanical feeding with a crane)
Optional crane for feeding
On three-points tractor, on road or farm trailer, or on frame.
Motorization
Bezin or diesel motor from 200 kW.
Adapted to any standardized tree-points of agricultural tractor driving by the power take-off shaft of tractor, 540 r.p.m. or 1000 r.p.m.
Specific adaptations possible
Move your mouse over the thumbnails to see larger images.

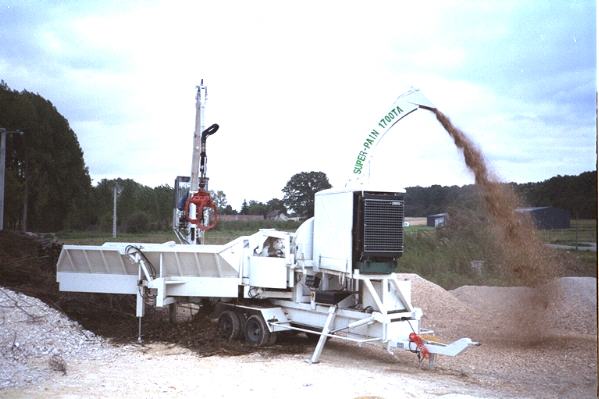

Autonomous SUPER-PAIN 1700 chipper, VOLVO 220kW motor
On road trailer, double 19 t central axles ;
EPSILON crane 5t/m lenght of jib 7m
Autonomous SUPER-PAIN 1700 chipper, VOLVO 220kW motor
On road trailer, double 19 t central axles ;
EPSILON crane 5t/m lenght of jib 7m

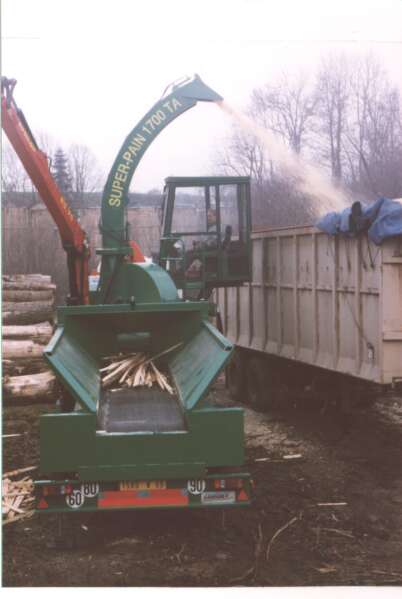

SUPER-PAIN 1700 chipper installed on 280hp HESTON silage
NOKKA crane 4,4 t/m, length of jib 7m

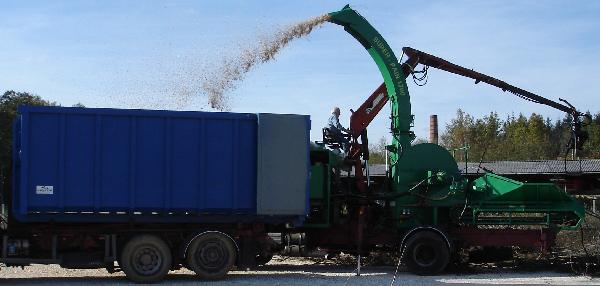

Autonomous SUPER-PAIN 1700 chipper, 400 hp motor, on truck.
Jonsered crane, 4,4 t/m, length of jib 7m
