SUPER-PAIN 600

• Chipper with 6 radial blades upon a disk of Ø 600 mm.
• Rotation speed : from 540 to 1500 rpm
• Special cutting table thickness of the chips inferior to 4 mm, without any risk of filling-in of the evacuation.
• Not any big piece or sawdust
• Very strong mechanical-weldment.
• Cutting capacity : up to 170 mm diameter (according to the available power).
• Output per hour : up to 7 m³ of chipped matter (34 m³ theoretic), according to the type of branches.
• Evacuation neck swinging out 360° for loading into trailer (2 m height).
• Optional hydraulic bough-dragger (with autonomous hydraulic generator)
• On three-points tractor, on road or farm trailer, or on frame.

• Electric motor from 14 kW mono 230 V or three-phase 400 V.
• Bezin or diesel motor from 23 kW, belts transmission.
• Adapted to any standardized tree-points of agricultural tractor driving by the power take-off shaft of tractor, 540 r.p.m. or 1000 r.p.m., required power : at least 30 hp.

Move your mouse over the thumbnails to see larger images.

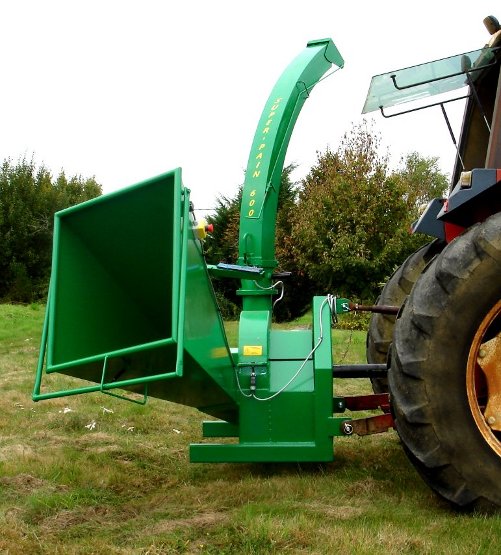

SUPER-PAIN 600 chipper option three-point tractor
without hydraulic bough-dragger

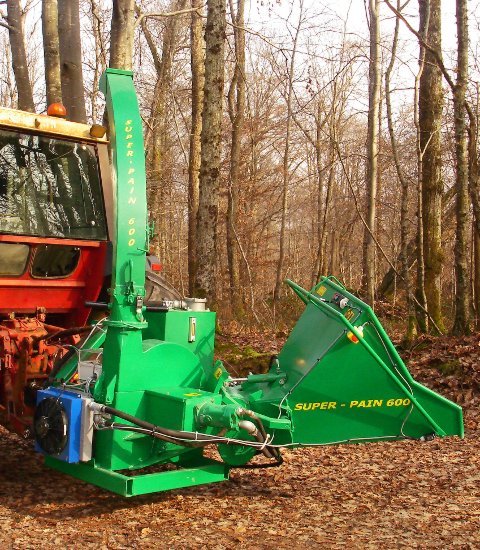

SUPER-PAIN 600 chipper option three-point tractor
with hydraulic bough-dragger, power control.

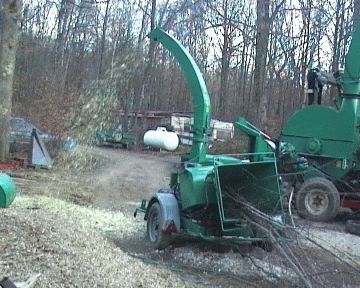

Autonomous SUPER-PAIN 600 chipper, 27 hp motor,
without hydraulic bough-dragger, on 900 kg road trailer

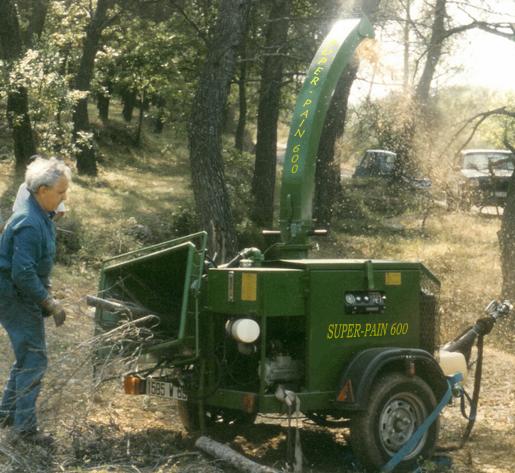

SUPER-PAIN 600 chipper, 50 hp motor,
with hydraulic bough-dragger, power control. on 1300 kg road trailer

Autonomous SUPER-PAIN 600 chipper, 27 hp motor,
with hydraulic bough-dragger, power control. on 1300 kg road trailer
